Hot Air Oven

Hot Air Oven

Specification:-

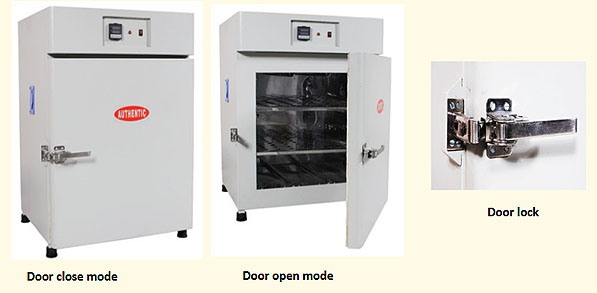

• Construction: The chamber is constructed in double wall. The interior of the chamber is made of Aluminum with two coats of primer and 3 coats of DUCO paint with PUF insulation in be- tween. The door is fitted on the chamber by heavy - duty hinges and locking arrangement. Gas- kets on the door.
• Internal Size: 18” x 18” x 18”.
• Temperature Controller: Thermostatic Temperature Controller used for controlling ambient to 80 ⁰ C ± 1 ⁰ C, 50 ⁰ C to 220 ⁰ C ± 2 ⁰ C. Visual temperature display.
• Control Panel: Controls to compromise thermostatic with PT - 100 sensor etc.
• Inspection lamp: One low watt bulb for internal inspection automatically / manually operated.
• Shelves: 3 Nos.
• Fan : Fan for proper temperature, maintaining.
• Power Supply: 240 Volts, 50 Hz, 150 W Single phase A.C. Supply.
