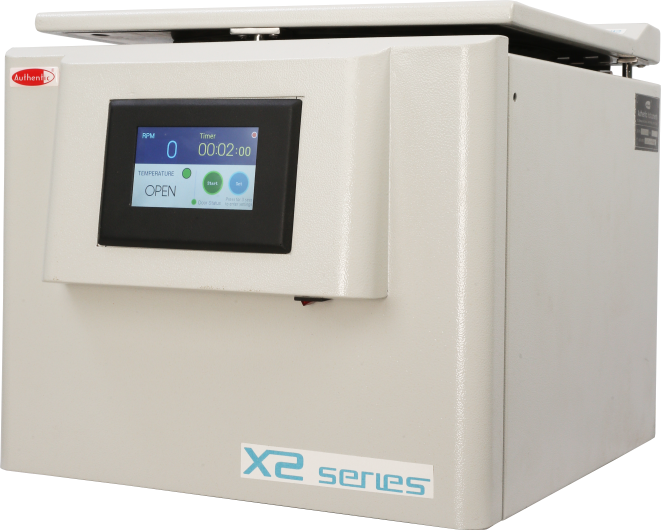

Laboratory Centrifuge





Specification:-

  • Purpose : For separating test tube components in different parts to analyze tests.

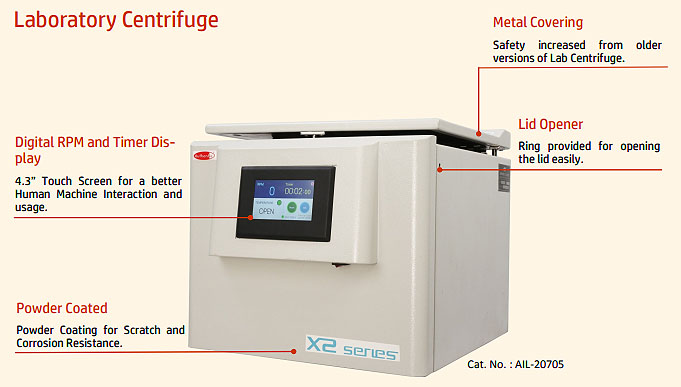

  • 4.3” Touch screen HMI for monitoring the RPM and time of centrifugation, it controls the speed of motor and displays time countdown ranging up to 59:59 minutes.
  • Highest Speed of the equipment is 5500 RPM and maximum RCF (Relative Centrifugal Force) is 4574 g.
  • External Housing made from galvanized sheet (rust proof) of 18 SWG, with grey, anti-scratch powder coating. Length of power cable, approx. 2 m.
  • Interior made from 304 grade 22 SWG stainless steel.
  • Interior consists of holders to hold metal test tubes in which normal test tubes will be inserted, maximum capacity is 450 mL.
  • Door Lock on the right-hand side to lock the door from opening in between the process.
  • Visual Indication function with an audible alarm signal in the case of cycle over.
  • Ventilation-enforced machine, vibration free, energy saving, low noise, easy to service.
  • On the 4.3” Touch Screen HMI the RPM and Countdown Timer are shown, the RPM and Timer can be set Individually.
  • Lid Open Indicator to show whether the Lid is locked properly or not.
  • Powerful motor to provide maximum performance.
  • Alarm in case of high/low temperature, door open & power failure
  • The grey powder coating suits with the Laboratory environment.
