Platelet Incubator cum Agitator PIA-60 & PIA-120

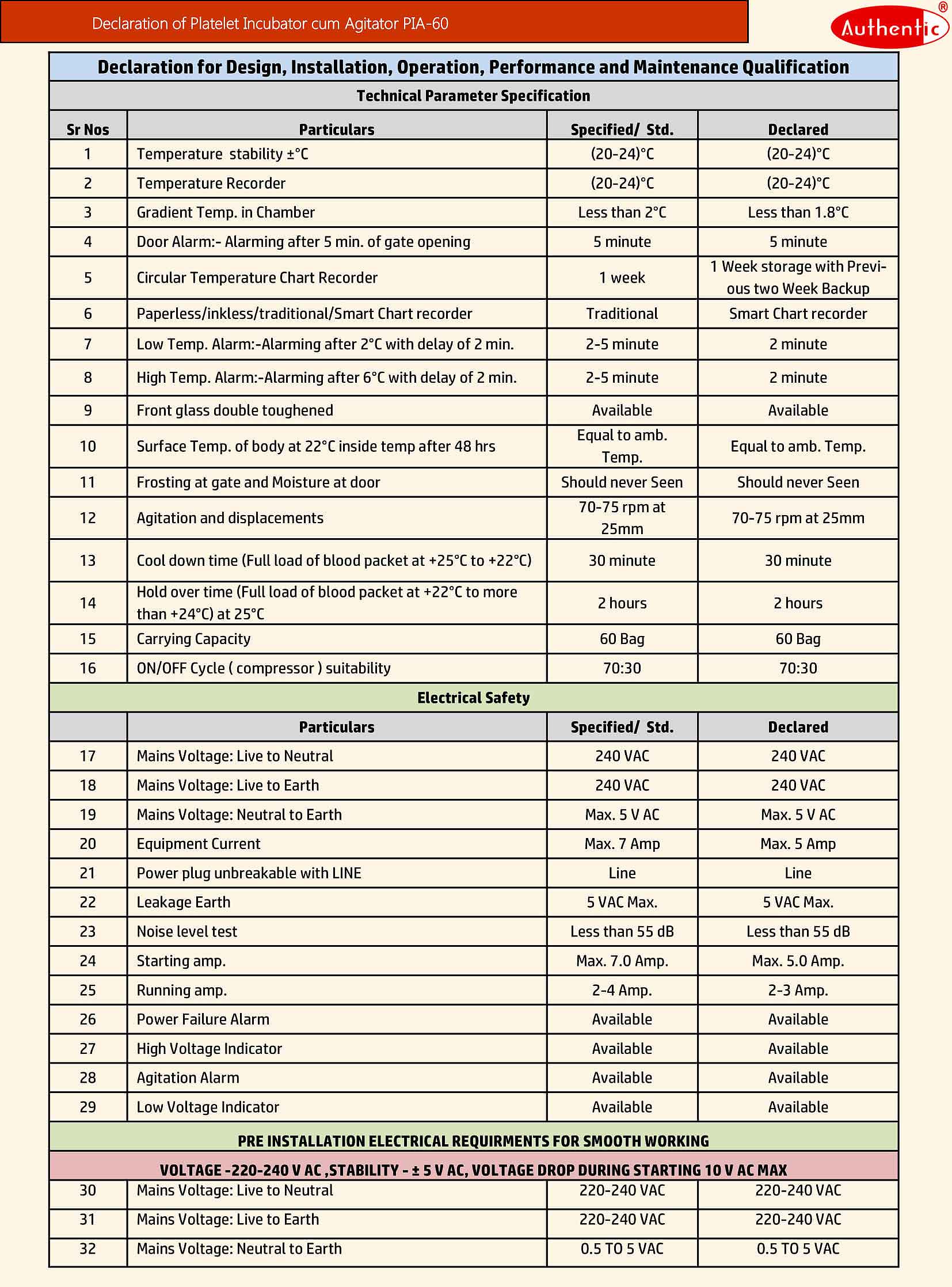

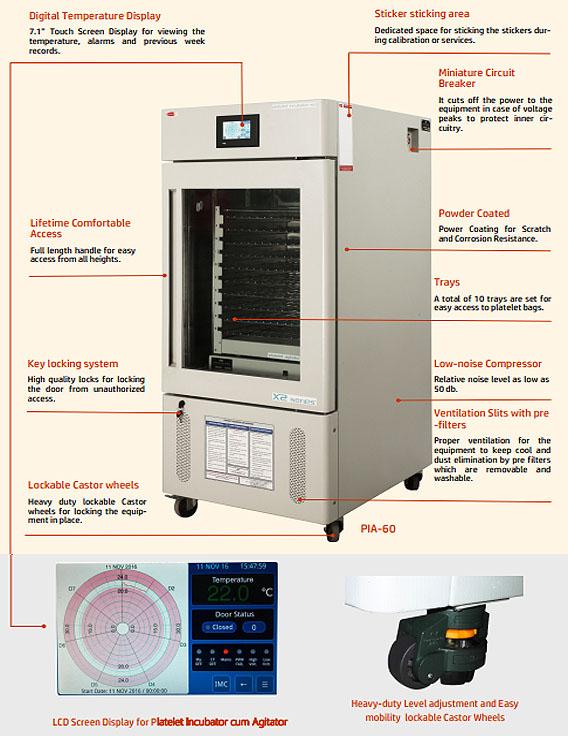

Platelet Incubator cum Agitator PIA-60

Platelet Incubator cum Agitator PIA-60

• Purpose : To agitate the Platelet Bags at 22°C so that the platelet doesn’t coagulate.
• 7.1” Touch screen for monitoring and controlling the temperature of the equipment.
•  Inkless & paperless smart chart recording system with 3 weeks chart storage capacity.
• Digital circular chart can be downloaded from the controller by using a pen drive*.
•  External Housing made from galvanized sheet (rust proof) of 18 SWG, with grey, anti-scratch powder coating. Length of power cable, approx. 2 m.
• Lockable Castor Wheels to lock the equipment in place without moving.
• Interior made from 304 grade 22 SWG stainless steel.
• Interior consists of 10 trays on an agitator to place platelet bags.
• Capacity per tray approx. 6 platelet bags.
• Door stop on the right-hand side to stop the door from opening more than 100-110 degrees.
• Forced air cooling with axial blower, switches off automatically when you open the door, ensures a uniform temperature and minimizes temperature deviation.
• Front door double Vacuum packed toughened glass.
• Warning function with visual and audible alarm signal in the case of power failure, temperature deviations, voltage fluctuation, door left open (after 60 seconds).
• Battery backup^ for up to 36 hours for temperature and chart recording system.
• Central Monitoring System compatible so that temperatures from all the equipment could be seen at one place.
• Low-noise compressor reduces noise to a negligible range.

HIGHLIGHTS:-

• Automatically mails the digital circular chart at 3 e - mail IDs every weekend and can mail any time by using Manual Mail function.
• In case of fault occurrence, a SMS is sent to a primary number, then he has to acknowledge the fault by using Acknowledge function, if he doesn’t acknowledge the fault then a SMS is sent to a higher authority.
• GSM Module for alarm text message and e - mail forwarding about all the faults.
• Port for Central Monitoring System for view- ing the temperatures of all the blood bank equipments at same place on 10.3” Touch Screen industrial computer.
• USB port for chart downloading to pen drive*.

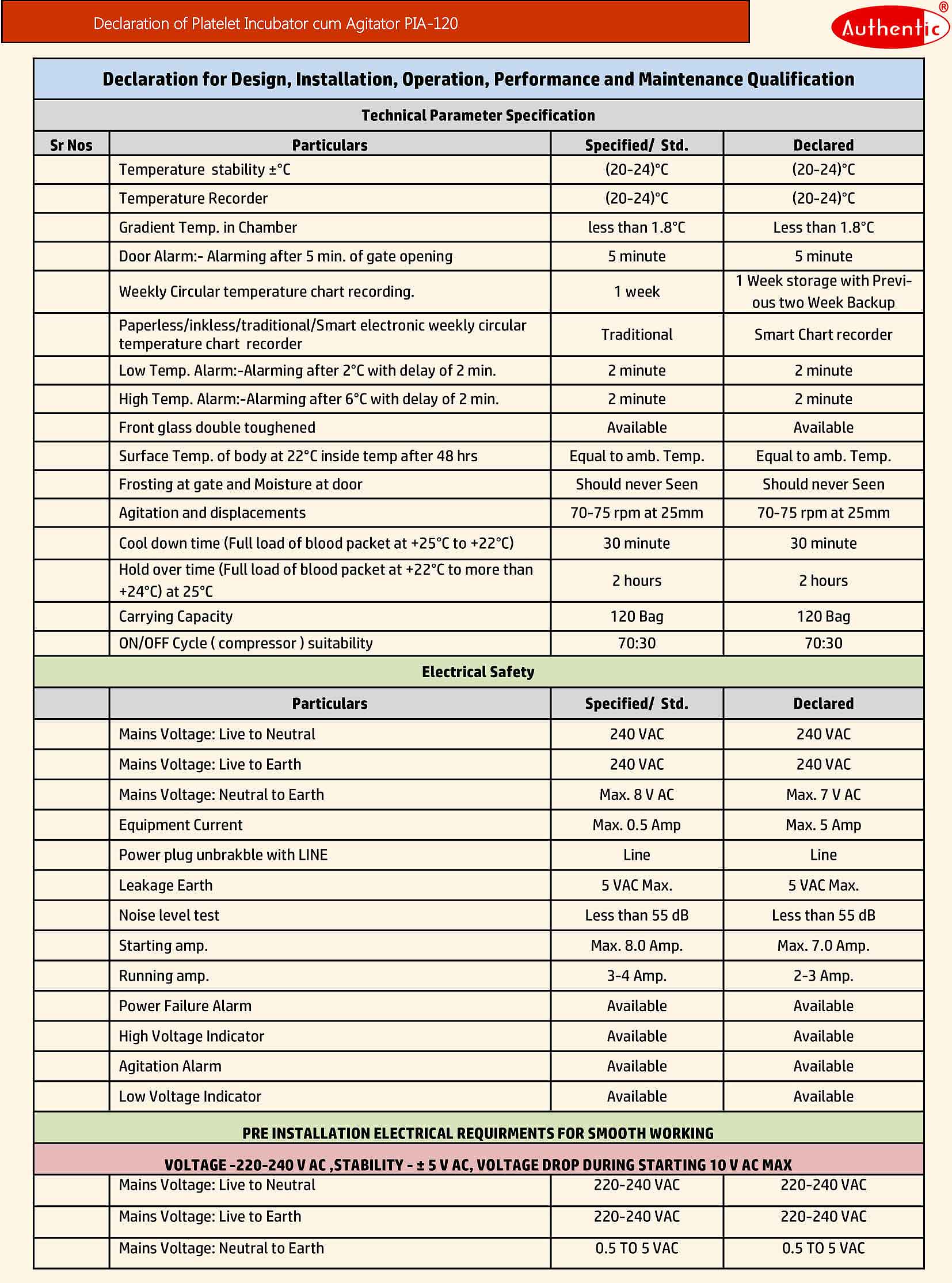

Platelet Incubator cum Agitator PIA-120

Platelet Incubator cum Agitator PIA-120

• Purpose : To agitate the Platelet Bags at 22°C so that the platelet doesn’t coagulate.
• 7.1” Touch screen for monitoring and controlling the temperature of the equipment.
•  Inkless & paperless smart chart recording system with 3 weeks chart storage capacity.
• Digital circular chart can be downloaded from the controller by using a pen drive*.
•  External Housing made from galvanized sheet (rust proof) of 18 SWG, with grey, anti-scratch powder coating. Length of power cable, approx. 2 m.
• Lockable Castor Wheels to lock the equipment in place without moving.
• Interior made from 304 grade 22 SWG stainless steel.
• Interior consists of 10 trays on an agitator to place platelet bags.
• Capacity per tray approx. 6 platelet bags.
• Door stop on the right-hand side to stop the door from opening more than 100-110 degrees.
• Forced air cooling with axial blower, switches off automatically when you open the door, ensures a uniform temperature and minimizes temperature deviation.
• Front door double Vacuum packed toughened glass.
• Warning function with visual and audible alarm signal in the case of power failure, temperature deviations, voltage fluctuation, door left open (after 60 seconds).
• Battery backup^ for up to 36 hours for temperature and chart recording system.
• Central Monitoring System compatible so that temperatures from all the equipment could be seen at one place.
• Low-noise compressor reduces noise to a negligible range.

HIGHLIGHTS:-

• Automatically mails the digital circular chart at 3 e - mail IDs every weekend and can mail any time by using Manual Mail function.
• In case of fault occurrence, a SMS is sent to a primary number, then he has to acknowledge the fault by using Acknowledge function, if he doesn’t acknowledge the fault then a SMS is sent to a higher authority.
• GSM Module for alarm text message and e - mail forwarding about all the faults.
• Port for Central Monitoring System for view- ing the temperatures of all the blood bank equipments at same place on 10.3” Touch Screen industrial computer.
• USB port for chart downloading to pen drive*.
